GC02 Multi-functional Roll Groover for Max 6" Steel Pipes
Features
Cam-type feed actuation -- translated into minimum operator effort to form roll grooves.
Durable cast-iron housing withstands extensive field use.
Light weight, only 17kg without SQ50D power drive.
Integral feed handle is part of overall unit, no extra tools required.
Easy serviceability – drive and groove rolls are easy to change.
Product Description
The Model GC02 Roll Groover is the most durable and efficient light weight portable unit available.
Built with a solid, durable cast-iron housing, it withstands heavy usage, yet is light enough for easy transportation.
The GC02 features a single stroke feed mechanism that allows for accurate operation quickly and effortlessly.
Specifications
Capacity: 1¼”-6” Sch. 10 steel, stainless steel.
1¼”-3” Sch. 40 steel, stainless steel.
SQ50D power drive : 1500W universal type motor
Standard Equipment
One 1¼”-6” Roll Groove Set for steel. (1¼”-6” Sch. 10,1¼”-3” Sch. 40)
Ordering Information
| Catalog No. | Model No. | Description |
| 70200 | GC02 | Roll groover with standard 1¼”-6” roll set only |
| 67040 | GC02+SQ50D | Roll groover with SQ50D power drive 110V/60Hz |
| 67041 | GC02+SQ50D | Roll groover with SQ50D power drive 220V/50Hz |
Accessories
| Catalog No. | Model No. | Description |
| | -- | Roll Set for 1¼”-6” |
| | 1107 | Pipe support stand(optional) |

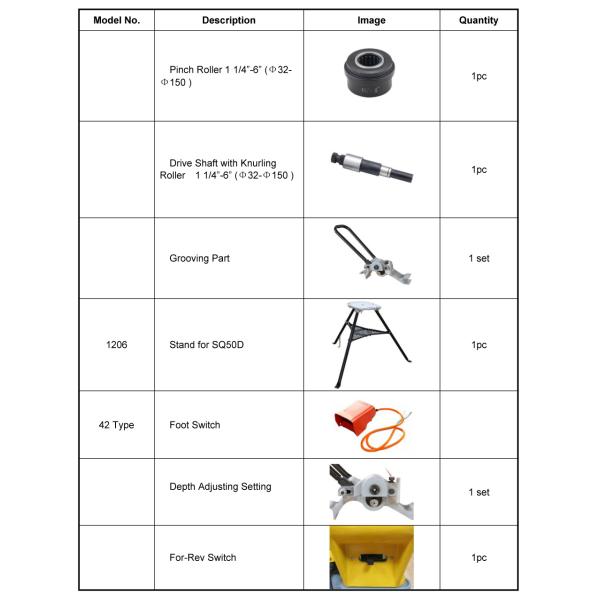

Standard Spares for Roll Grooving Machine
HS:8462490000
Roller and Shaft
Groover Attachment
Power Drive

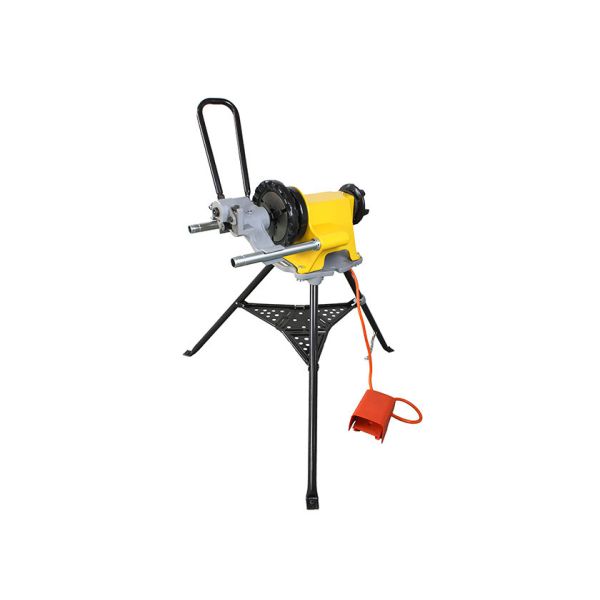

GC02 Roll Groover with Power Drive
Package
Product Tags:
|
|
Power Driven GC02 Roll Pipe Grooving Machine For 1 1/4"-6" Steel Pipes 1500 Watts Images
|
